300L/min
225/330 Bar
5.5kw
7.5hp
1600rpm
120kg
1070*550*591mm
Three-phase 380V, 50HZ
| Quantity: | |
|---|---|

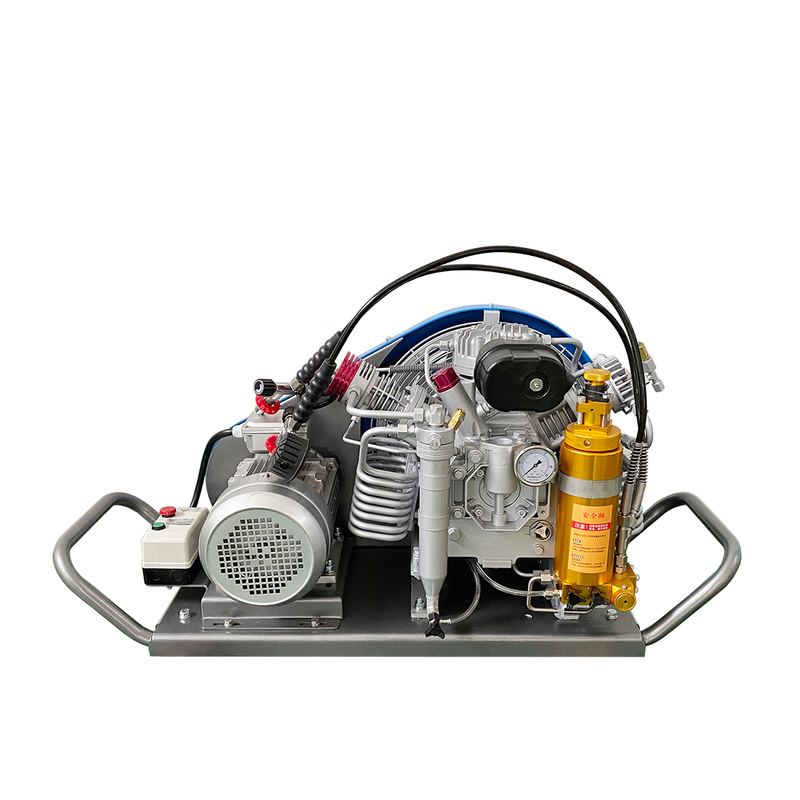

NRW300Y air compressor adopt oil pump lubrication. It has stable performance and compact design structure. The standard configuration includes two filling hoses and two filling valves, which can simultaneously inflate two cylinders to improve efficiency. It's applicable for use in firefighting, diving, chemical, rescue, etc. This series is driven by three-phase motor.
Features
▸3 stage compression design
▸Cooling method: air cooling
▸Lubrication method: oil pump
▸Manual stop is standard
▸Automatic stop is optional
▸Automatic condensate drain is optional
▸Air quality complies with EN12021
▸CE, CCS, ISO9001, EN12021 certificates
▸Providing 225 Bar/330 Bar filling pressure for options
▸The motor has overload, overheating and low voltage
Technical Specifications
| Model | NRW200Y | NRW265Y | NRW300Y |
| Charging rate (L/min) | 200 | 265 | 300 |
| Max. pressure | 225/330 | 225/330 | 225/330 |
| Number of stages | 3 | 3 | 3 |
| Drive mode | Three-phase 380V, 50HZ | Three-phase 380V, 50HZ | Three-phase 380V, 50HZ |
| Speed(rpm) | 1180 | 1380 | 1600 |
| Power(kw) | 4.0 | 5.5 | 5.5 |
| Horse(hp) | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 120 | 120 | 120 |
| L*W*H(mm) | 1070*550*591 | 1070*550*591 | 1070*550*591 |
| Air supply interface | G5/8'' | G5/8'' | G5/8'' |
| Note: Motors with different voltages of 50HZ or 60HZ can be customized | |||
 | Select the model you are interested in |
NRW200Y
NRW265Y
NRW300Y
Download
NRW200Y, 265Y, 300Y Electric Series Product Details.pdf
