810L/min
420 Bar
15kw
20hp
1430rpm
585kg
910*1300*1400mm
Three-phase 380V, 50HZ
| Quantity: | |
|---|---|

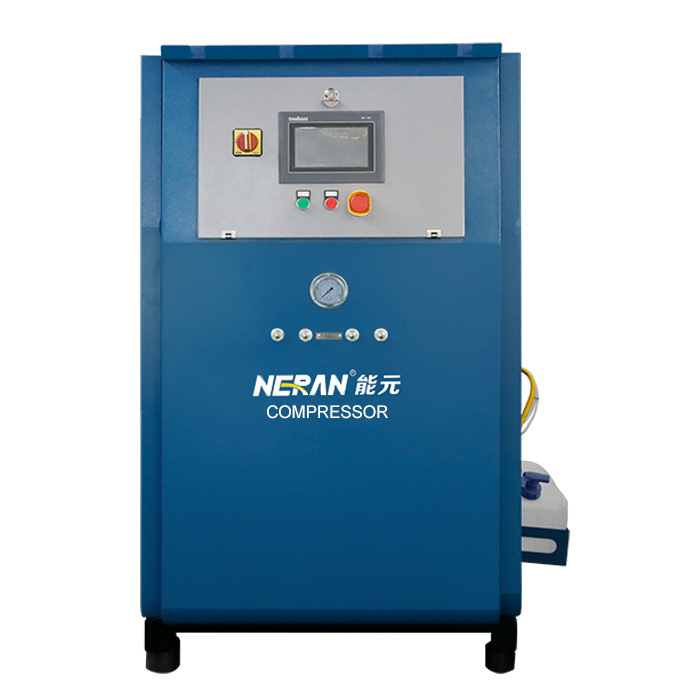

This series is a stationary, automatic and silent air compressor, which has fully enclosed structure and low noise. It's applicable for use in firefighting, diving, chemical, mining, rescue, etc. This series is driven by three-phase motor.
Features
▸PLC intelligent control
▸4 stage compression design
▸Air quality confoms to EN12021
▸CE, CCS, ISO9001 certificates
▸Cooling method: air cooling
▸Lubrication method: oil pump
▸Functions: emergency switch, automatic start, automatic stop, automatic condensate drain, low oil level protection, phase sequence protection, filter expiration reminder, etc
Technical Specifications
| Model | NRX680 | NRX720 | NRX810 |
| Charging rate (L/min) | 600 | 720 | 810 |
| Max. pressure | 420 | 420 | 420 |
| Number of stages | 4 | 4 | 4 |
| Drive mode | Three-phase 380V, 50HZ | Three-phase 380V, 50HZ | Three-phase 380V, 50HZ |
| Speed(rpm) | 1320 | 1350 | 1430 |
| Power(kw) | 15 | 15 | 15 |
| Horse(hp) | 20 | 20 | 20 |
| Weight(kg) | 584 | 584 | 585 |
| L*W*H(mm) | 910*1300*1400 | 910*1300*1400 | 910*1300*1400 |
| Air supply interface | G5/8'' | G5/8'' | G5/8'' |
| Note: Motors with different voltages of 50HZ or 60HZ can be customized | |||
 | Select the model you are interested in |
NRX680
NRX720
NRX810
Download
NRX680, 720, 810 Series Product Details.pdf
