265L/min
225/330 Bar
5.5kw
7.5hp
1450rpm
118kg
850*490*620mm
Three-phase 380V, 50HZ
| Quantity: | |
|---|---|

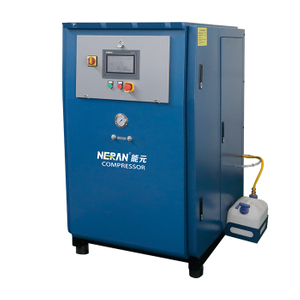

NRW265 air compressor has relatively light weight and small size which allows mobility and portability. It's equipped with two filling hoses and two filling valves, which can simultaneously inflate two cylinders to improve efficiency. It's applicable for use in firefighting, diving, chemical, mining, rescue, etc. This series can be driven by three-phase motor or gasoline engine to meet different application needs.
Features
▸3 stage compression design
▸Air quality confoms to EN12021
▸CE, CCS, ISO9001 certificates
▸Cooling method: air cooling
▸Automatic timing for working
▸Automatic stop is equipped
▸Automatic start is optional
▸Automatic condensate drain is optional
▸Providing 225 Bar/330 Bar filling pressure for options
▸Intelligent digital pressure controller for automatic start/stop
▸The motor has overload, overheating and low voltage protection
Technical Specifications
| Model | NRW200 | NRW265 | NRW300 |
| Charging rate (L/min) | 200 | 265 | 300 |
| Max. pressure | 225/330 | 225/330 | 225/330 |
| Number of stages | 3 | 3 | 3 |
| Drive mode | Three-phase 380V, 50HZ | Three-phase 380V, 50HZ | Three-phase 380V, 50HZ |
| Speed(rpm) | 1300 | 1450 | 1600 |
| Power(kw) | 4.0 | 5.5 | 5.5 |
| Horse(hp) | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 118 | 118 | 118 |
| L*W*H(mm) | 850*490*620 | 850*490*620 | 850*490*620 |
| Air supply interface | G5/8'' | G5/8'' | G5/8'' |
| Note: Motors with different voltages of 50HZ or 60HZ can be customized | |||
 | Select the model you are interested in |
NRW200
NRW265
NRW300
Download
NRW200, 265, 300 Electric Series Product Details.pdf
